Titan AV 1.3 Metre 200mm Box Truss

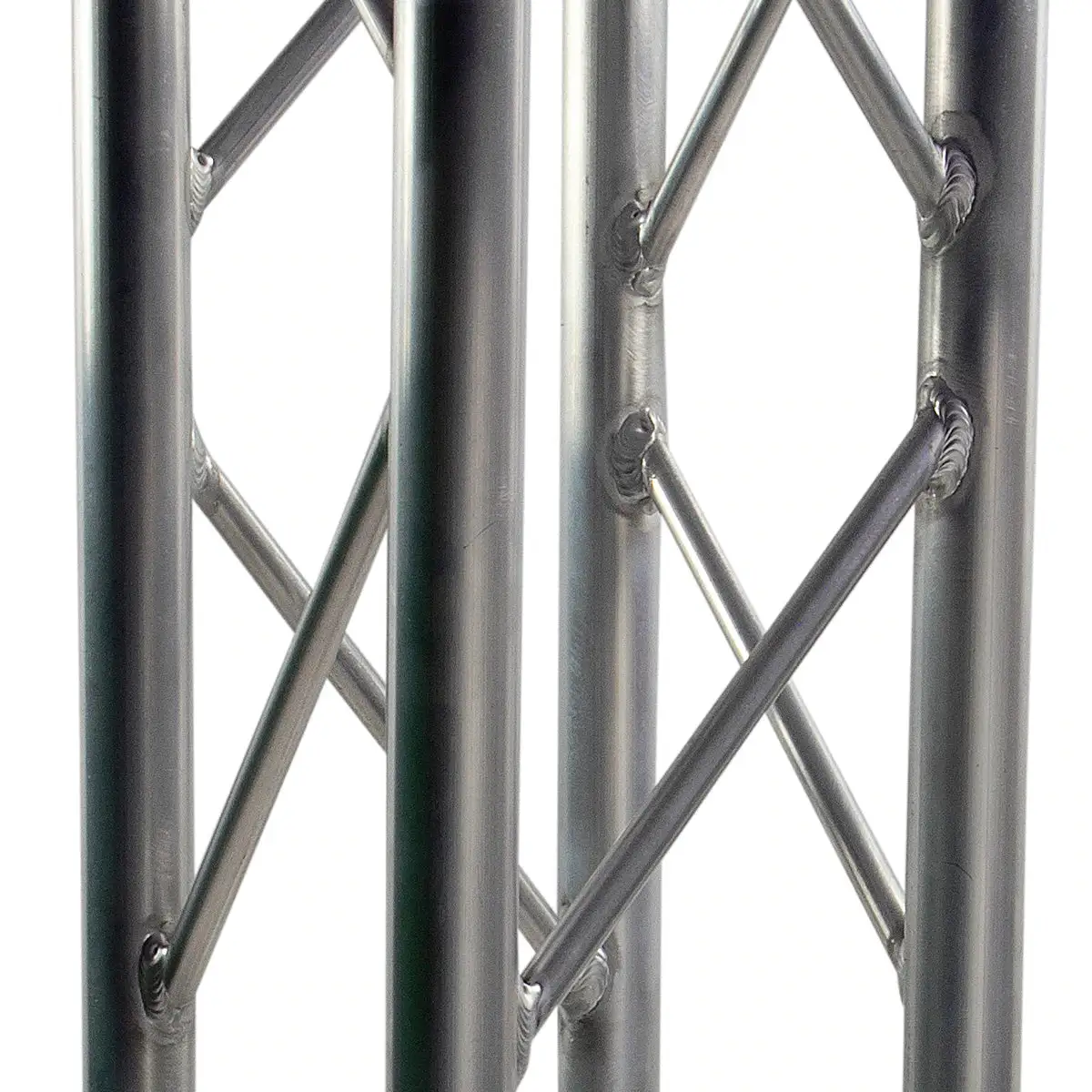

The TR-SQ20 series truss is a 200 Box or square profile truss mainly used for smaller corporate and indoors applications. The TR-SQ20 truss is often referred to as an installation truss because of its medium strong and smaller profile making it suitable for installation, small stage applications, retail stores and exhibition markets. Thanks to the innovative conical coupling system the 200 Box truss is fast and easy to assemble. TR-SQ20 truss is available in multiple lengths, cube corners, clamps, adapter accessories and base/top plates.

Features:

• Supplied fitted with conical couplers
• Set of spigots and pins included in sale (4 x Spigots, 8 x Pins & 8 x Clips)
• Rigging applications: Light duty lighting applications, display panels, signage & curtains
• Event application: Stage production, Venues, Exhibitions, Clubs & Churches
• Custom colours available (Powder coating), contact VFM team for a quote
• Warranty: 2 years

Specs:

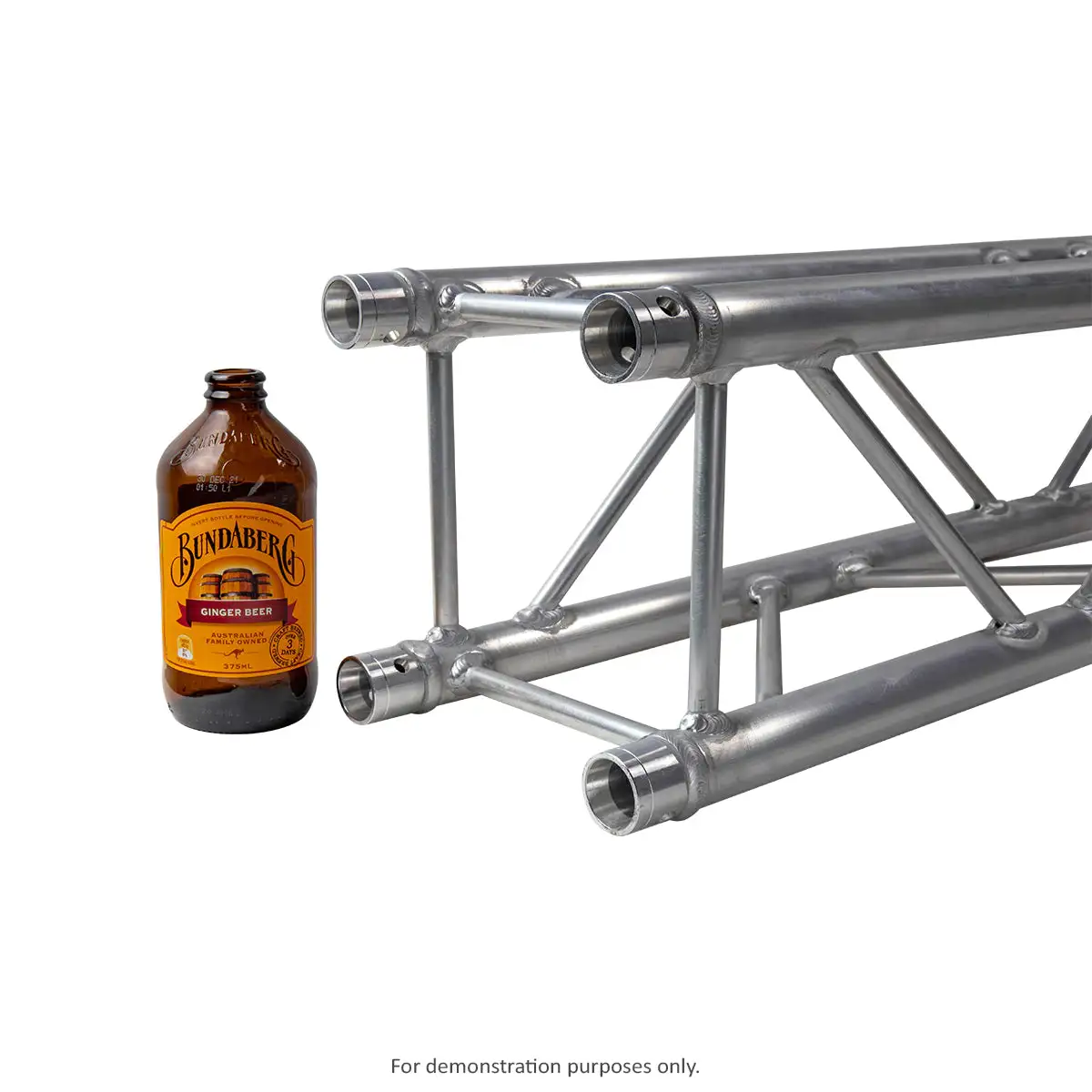

• Material: 6082-T6 Aluminium main tube: 32x2mm, braces: 12x2mm

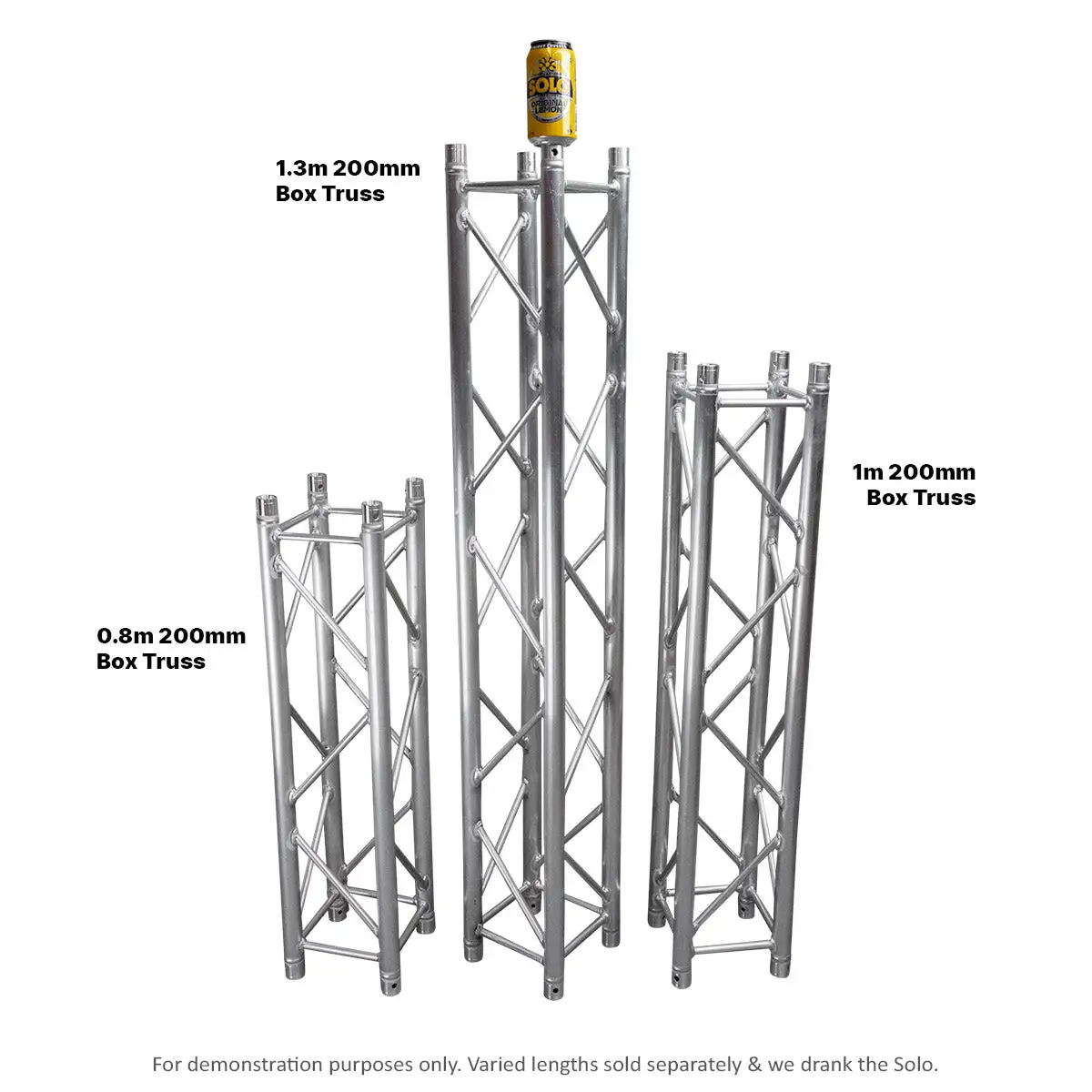

• Length: 1.3m
• Weight: 4.2KG
• 1 x 2m Box 200 x 200mm Truss



200 box truss Load Table

Span	Uniformly Distributed Load (UDL)	Deflection	Centre Point Load (CPL)	Deflection
M	KG/M	MM	KG	MM
1	634.8	0.0	634	0.0
2	314	0.0	458	0.0
3	210	6.0	301	5.0
4	110	12.0	221	8.0
5	69	21.0	172	10.0
6	46	30.0	139	17.0
7	32	40.0	114	28.0
8	24	52.0	95	39.0
