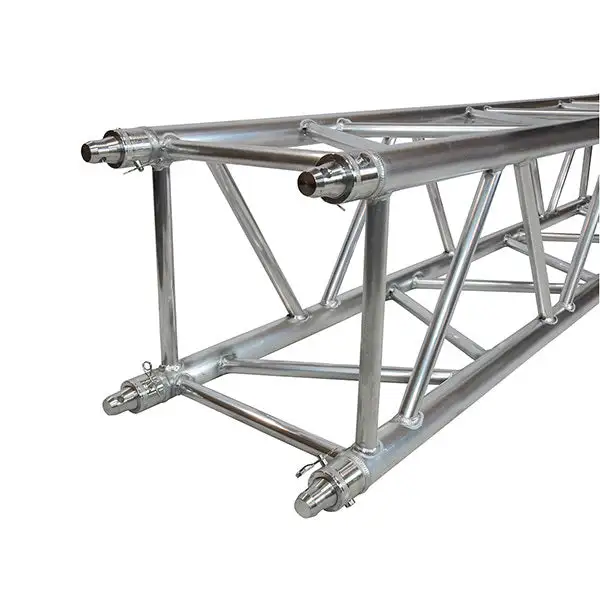

Titan AV 2.5 Metre 400mm Box Truss - Image 2

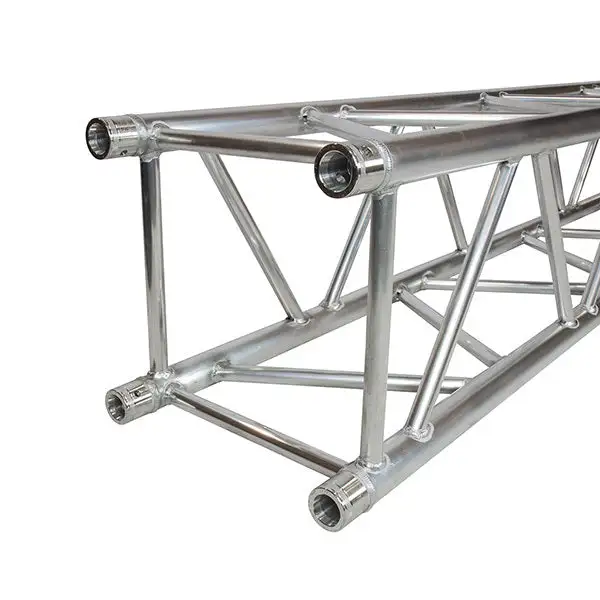

Titan AV 2.5 Metre 400mm Box Truss

$97.99

SKU: 6886944735441 Categories: 400 Box Truss, 400 TRUSS, TRUSS Tags: Over 22, Titan AV Trade Product

Get the Best for Less
Service with a smile, always online.
Shop with Zero Worries
Safe Shopping Guaranteed

Description
Reviews (0)

This is one of the more popular trusses used in Australia, perfect for medium – heavy duty truss systems where general use and short – long lengths are needed. More common applications are stage production, outdoor venues, LED screens, outdoor structures, exhibitions and shop displays.

This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 25x3mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the public.

Features:

Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
Supplied fitted with conical couplers
Set of spigots and pins included in sale
Perfect for stage production, hanging LED walls, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
Warranty: 2 years

Specs:

Length: 2.5m
Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 25x3mm
Weight: 18.2 kg
1 x 2.5m Box Truss 400mm

400mm Box Truss Load Table

Span	Uniformly Distributed Load (UDL)	Deflection	Centre Point Load (CPL)	Deflection
M	KG/M	MM	KG	MM
1	795	9.0	734.0	6.9
2	398	9.7	708.0	7.4
3	265	10.4	682.0	7.9
4	199	11.3	656.0	8.6
5	159	12.4	630.0	9.4
6	133	13.6	604.0	10.3
7	114	15.0	578.0	11.4
8	99	17.0	552.0	12.8
9	88	19.4	526.0	14.7
10	79	22.6	500.0	17.2
11	72	27.0	474.0	20.6
12	66	34.0	448.0	25.8
13	61	45.0	422.0	34.3
14	57	68.0	396.0	51.5
15	53	136	370.0	103
