Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H - Image 2

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H - Image 3

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H - Image 5

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H - Image 6

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H -Mixer Road Box Sales Shop KIT 0052 5c3045d0 1753 45db aebe 9f5dffb0ff80

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H -Mixer Road Box Sales Shop KIT 0052 fbfc4e77 341e 45e5 8cf0 f050a5f8cf53

Titan AV 290 Flat Truss Lighting Stand, 6m W X 4.1m H

$96.99

SKU: 6887004700881 Categories: 290 Packages, 290 TRUSS, TRUSS Tags: Over 22, Titan AV Trade Product

Get the Best for Less
Service with a smile, always online.
Shop with Zero Worries
Safe Shopping Guaranteed

Description
Reviews (0)

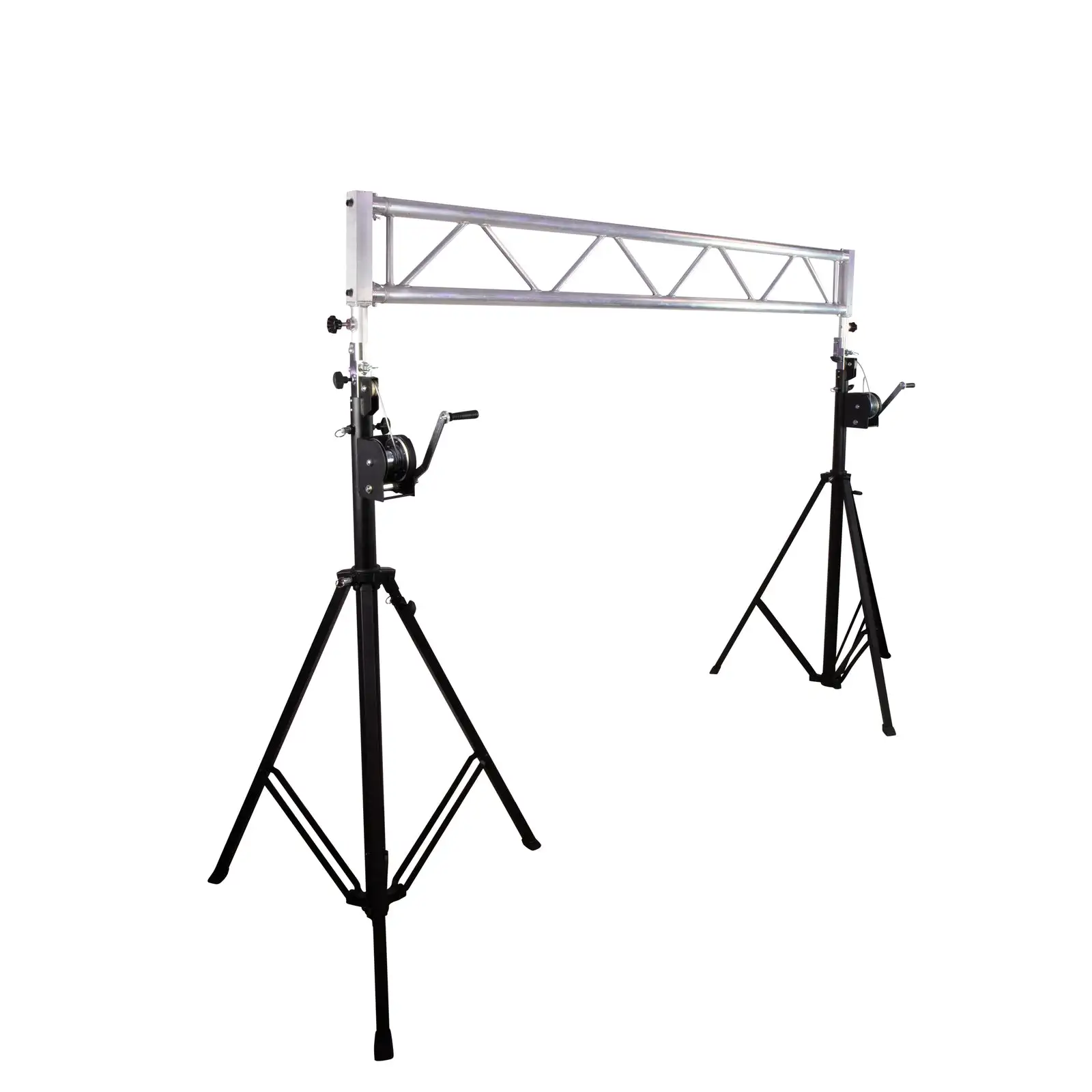

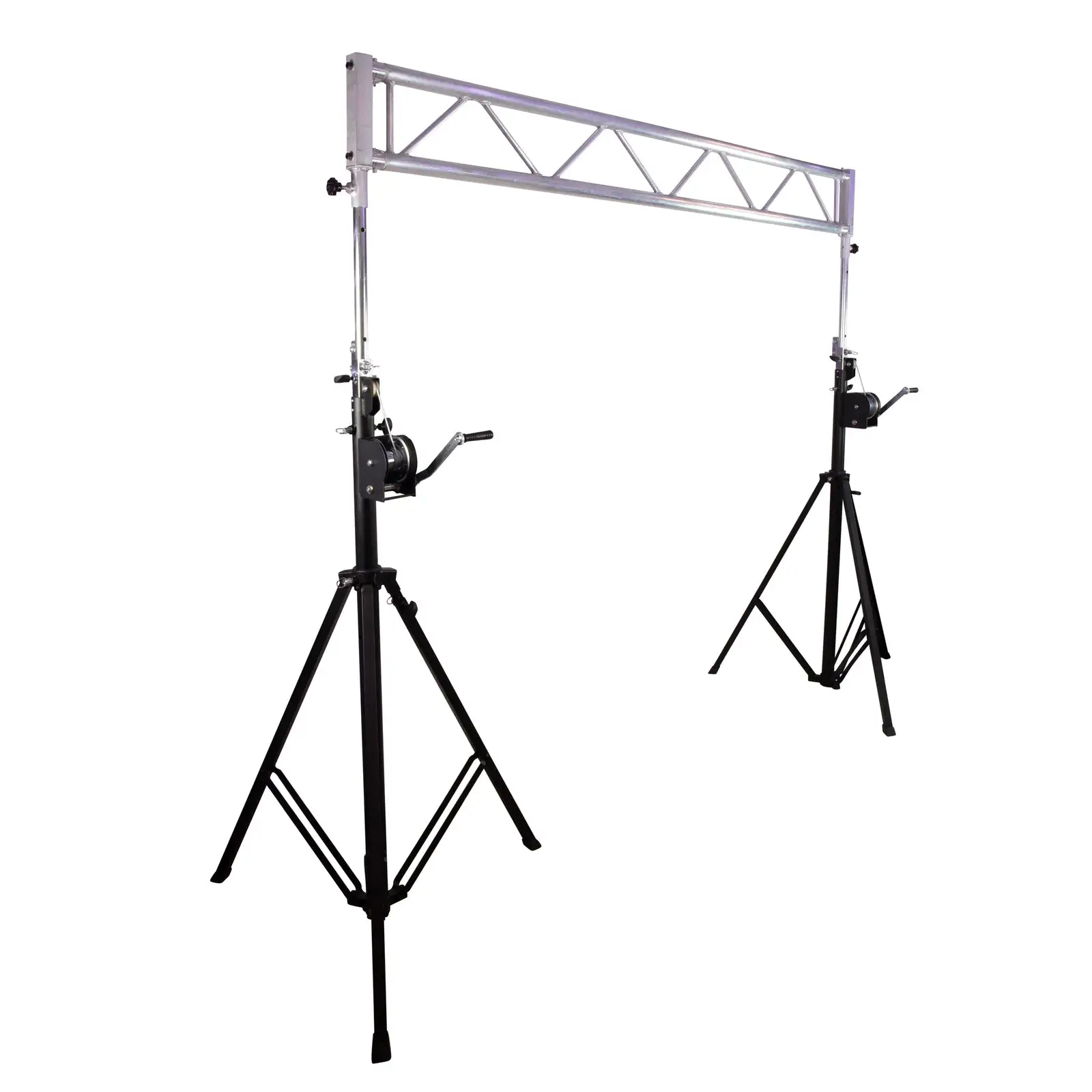

Titan AV winch-up lighting stand & flat truss system 6m wide x 4.1m height.

Package includes:

2 x Titan AV D-XL566 winch up stands
2 x Titan AV TR-SF30-300 290mm flat truss (6m span in total)

2 x Titan AV flat truss 35mm to 290 Flat truss adaptor

Total load capacity 20kg per meter

Features:

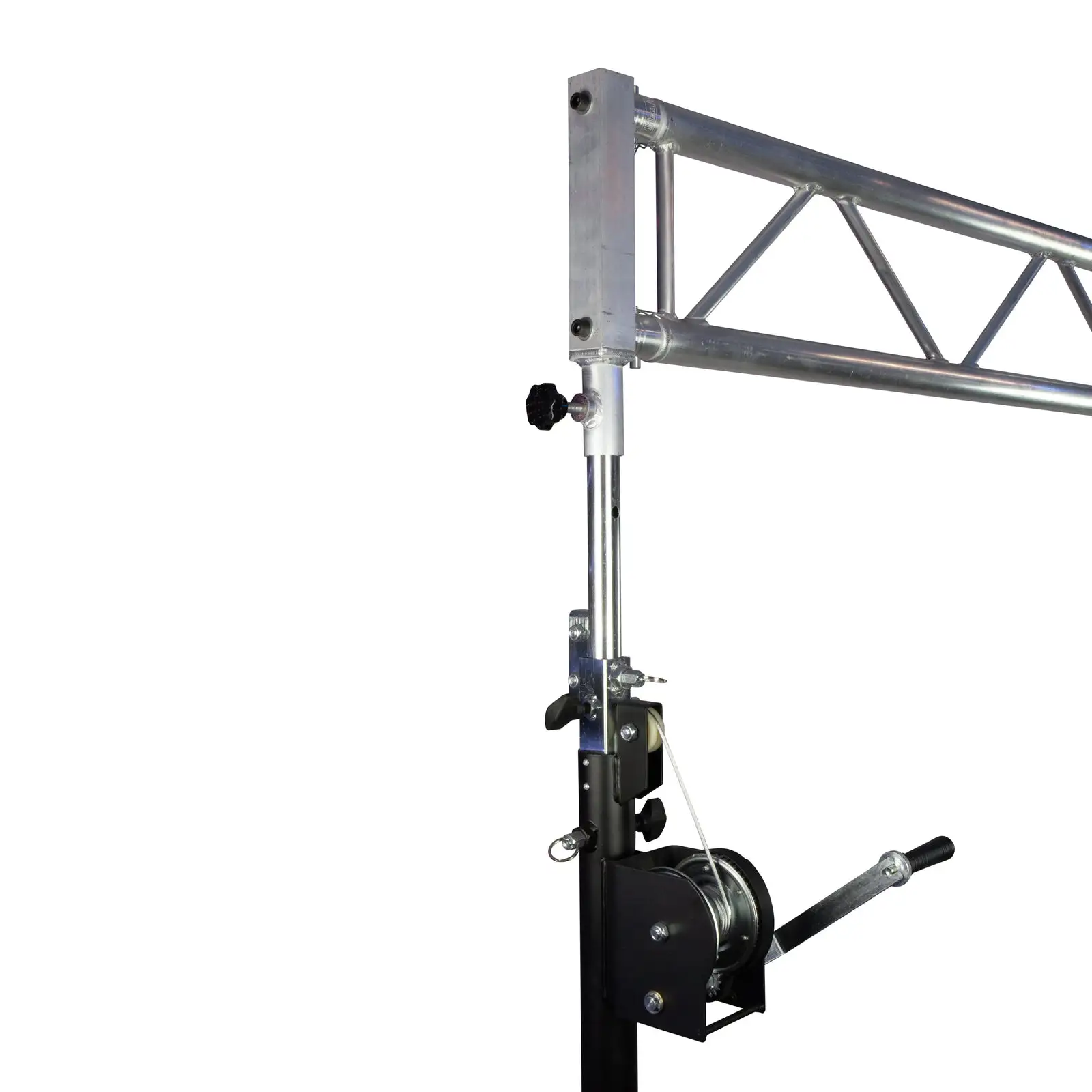

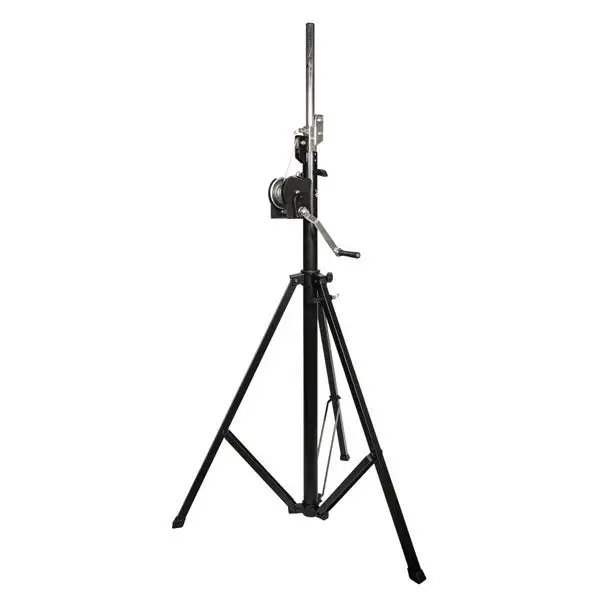

Winch up lighting stand:

• High quality metal safety pins

• Winch has built in clutch & fold down handle

• Adjustable foot print(3 settings): 86-125cm

• Length adjustment on one leg for un-level ground: 10cm, 1.5cm increments by 8 points

• Height adjustment: 170-410cm

• Fold down size: 166 x 22 x 29cm (HxWxD)

• Max loading weight: 80 kg

• Non-slip rubber feet

• Easy fold up and down

• Compact for transportation

• Material: Steel

• Colour: Black

• Weight: 25 kg

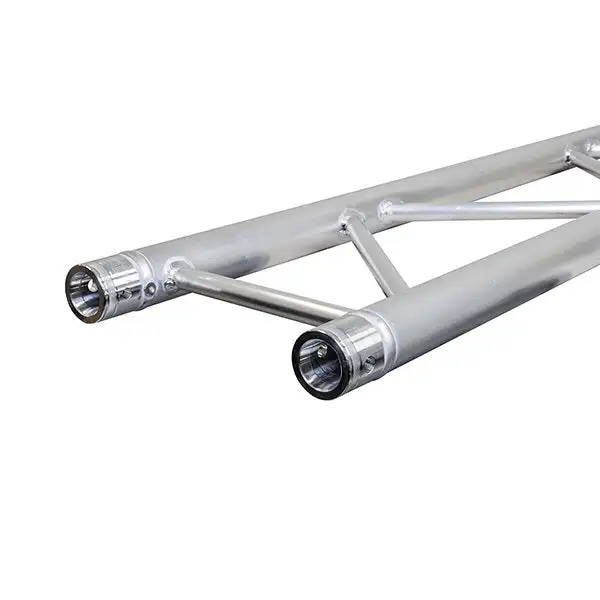

290 Flat Truss:

• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

• 3m Flat Truss 290mm aluminium

• Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm

• Length: 3m

• Supplied fitted with conical couplers

• Set of spigots and pins included in sale

• Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions

• Weight: 8.9kg

• Total load capacity 20kg per meter (As per truss KIT-0052)

Flat Truss Load Table

Span	Uniformly Distributed Load (UDL)	Deflection	Centre Point Load (CPL)	Deflection
M	KG/M	MM	KG	MM
1	845.0	0.0	845.0	0.0
2	418.0	3.0	623.0	2.0
3	218.0	6.0	345.0	5.0
4	95.0	13.0	202.0	11.0
5	43.0	21.0	114.0	17.0
6	20.0	30.0	53.0	24.0
