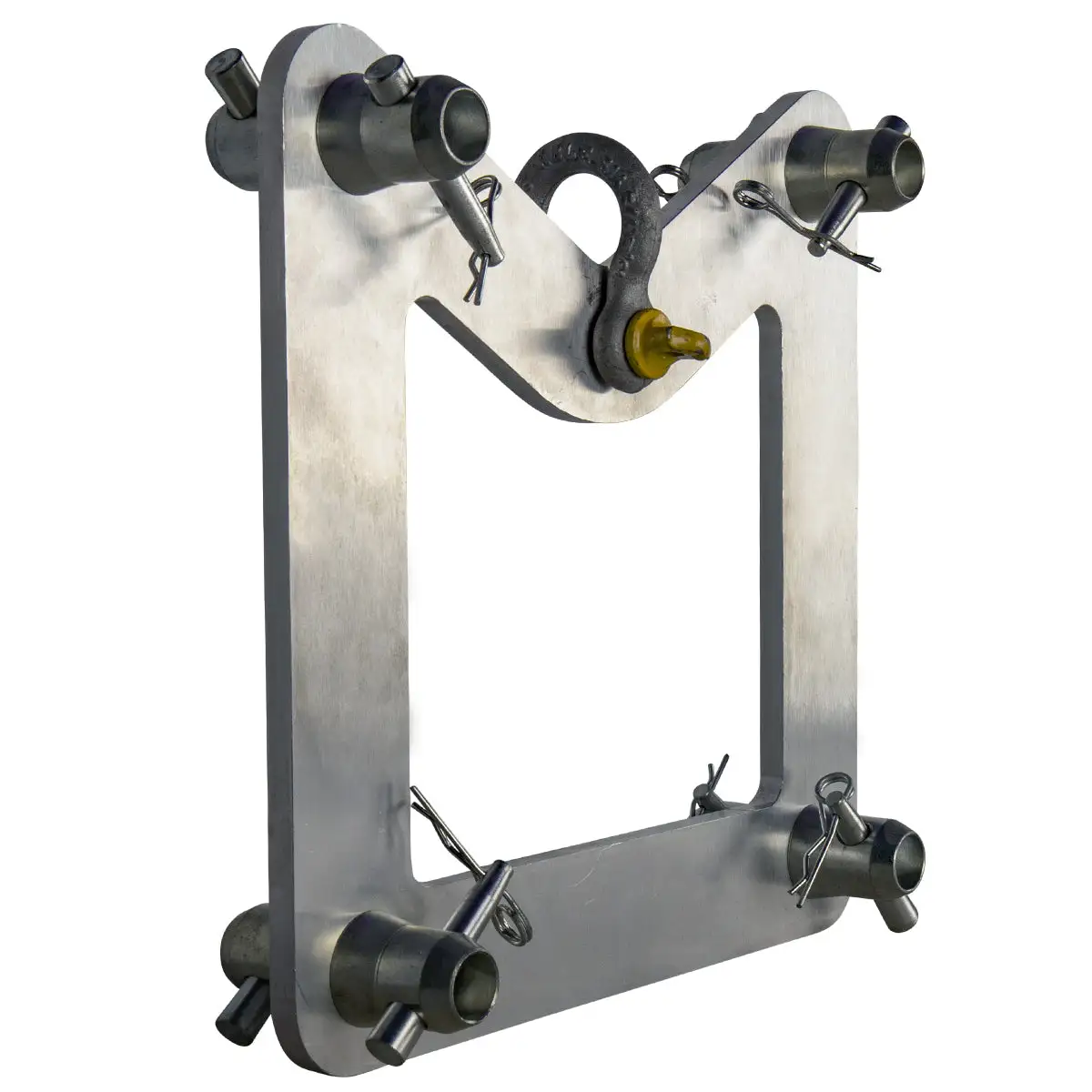

Titan AV 290 Inline Lifting Bracket – 1000Kg SWL

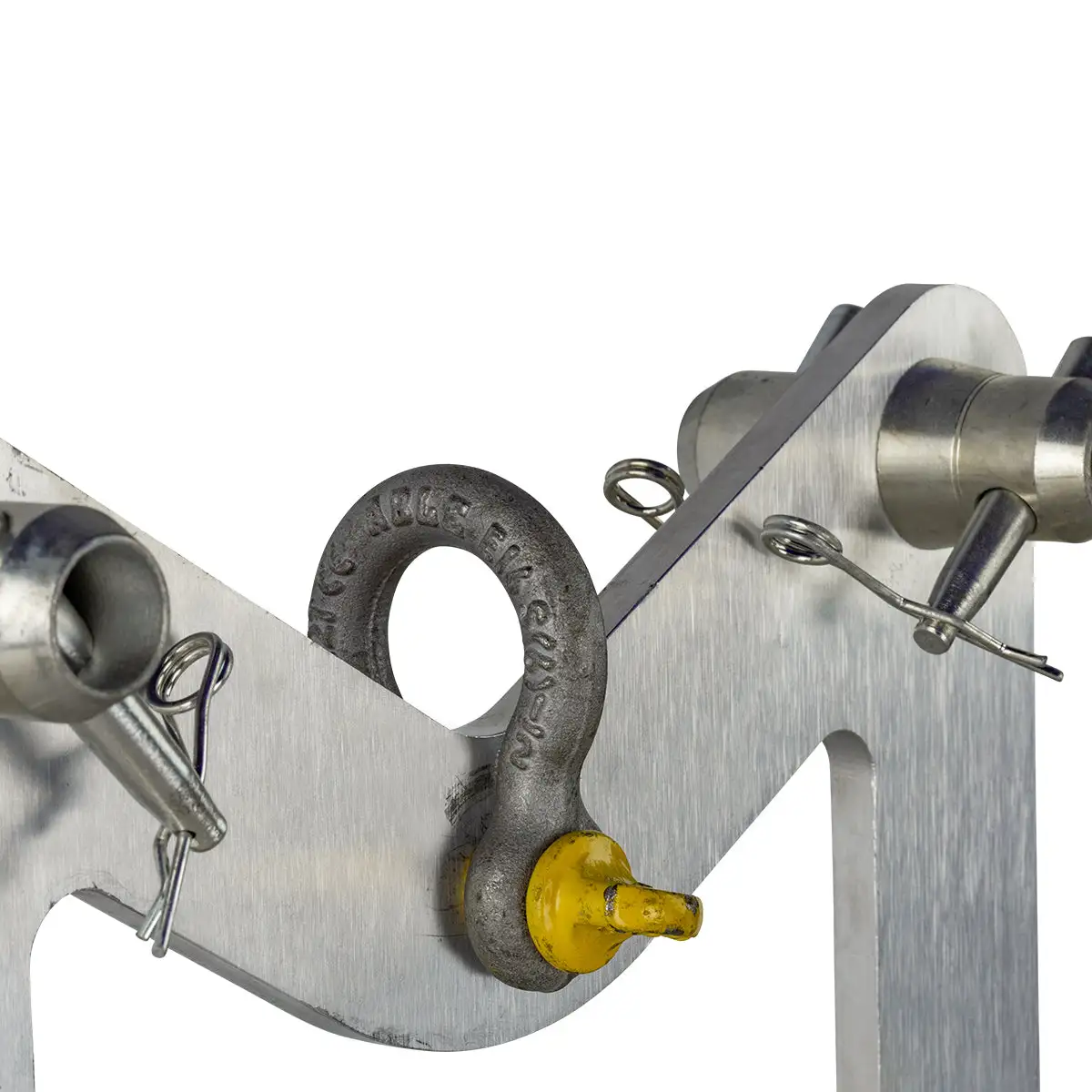

Titan AV 290 inline lifing bracket, also know as a truss end plate suspension bracket. Supplied with bow-shackle, Half spigots, pins and clips.



Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV inline lifting bracket comply with Australian engineering standards. Bow shackle conforms to Australia Standard AS2741, supplied with a working load limit, nominal size, quality grade, batch numbered and supplier identification.



*Please Note; Loaded rated to a SWL of 1000kg*



Features:



• 2-year manufacturer’s warranty

• 1 x 290 truss inline lifting bracket

• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

• Australian Standard AS2741

• Will work with Titan AV 290 box truss

• Finish: Silver mill finish

• Very high quality build and design

• Max load rating 1000kg

• Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains

• Event application: Stage production, Venues, Exhibitions, Clubs & Churches

• Dimensions: 300 x 300 x 100mm (DxHxW) (Including spigots)

• Material: 6082-T6 Aluminium plate, 10mm thick.

• Weight: 3.4 Kg
