Titan AV 290mm Box Lighting Truss Structure 3.6m(W) X 3.6m(D) X 2.8m(H)

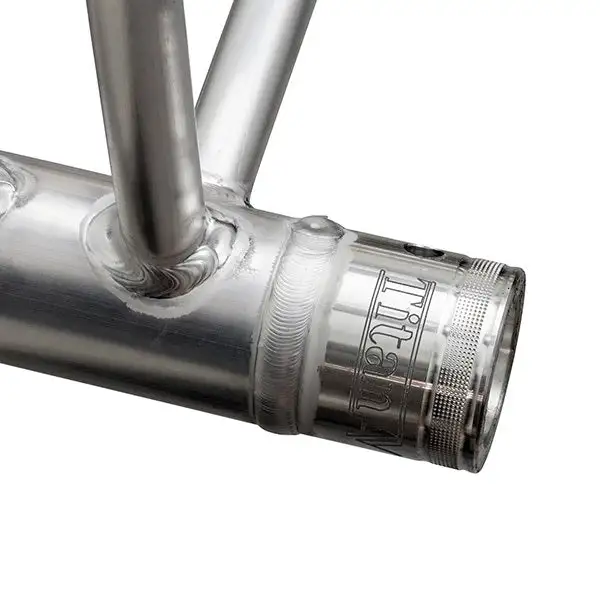

This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 20x2mm braces. The lighting truss comes fitted with conical couplers and supplied with all necessary spigots, pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the general public. Steel bases plates included in this kit are the new TAV 300 steel plates are powder coated black for a sleek look. This is the complete stage or production package.

After a different setup? Email or call the Titan AV team with your ideas.





Features

• Warranty: 2 years
• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• Set of spigots (conical couplers) and pins included in sale
• Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
• Truss packages are completely customisable, contact the VFM Team to see what we can do for you

​

Specs

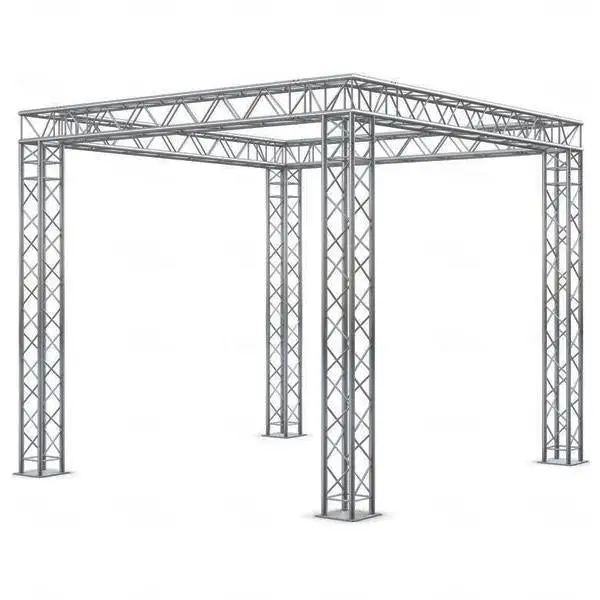

• Aluminium Stage Truss Frame 3.6m(W) x 3.6m(D) x 2.8m(H)
• Box Truss 290mm
• Height: 2.8m (2.5m Clearance)
• Width: 3.6m (3m Clearance)
• Depth: 3.6m (3m Clearance)
• Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm

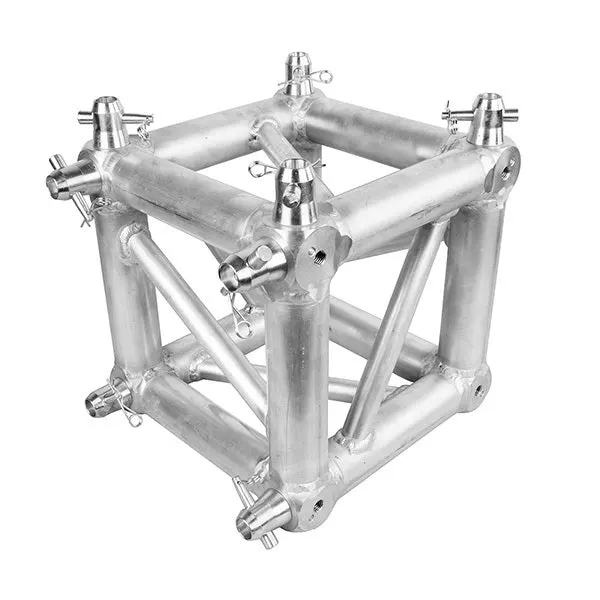

• 4 x Cube 290 Box Truss corners

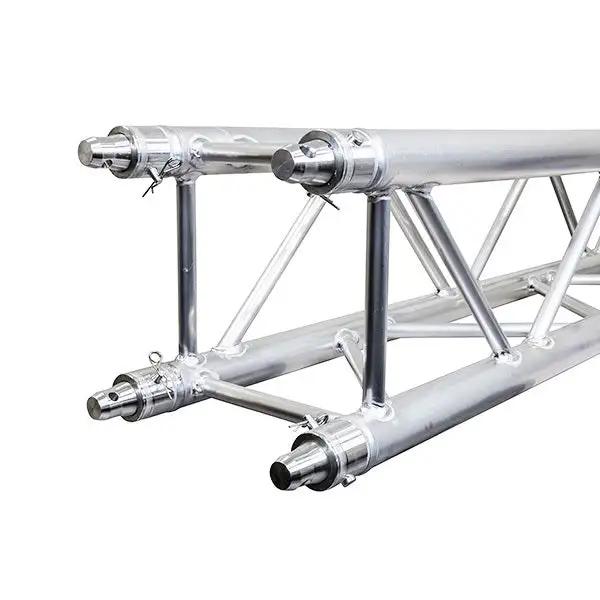

• 4 x 2.5m 290mm Box Truss lengths
• 4 x 3m 290mm Box Truss lengths
• 4 x Steel base plates 300x300mm
