Titan AV 290mm Box Truss LED Wall Frame 3.3m(H) X 6.6m(W)

5 chord 290mm Box trussing arch frame is ideal for hanging entertainment and media devices such as LED screens, display panels, signage, or curtains.

The extra chord runs down the centre on one side of the truss, thus allowing for a quick way to safely rig heavy line loads such as video walls. Not only does this 5th chord improve rigging speed and safety it also provides a very clean and tidy look to your stage or presentation. When using the 5 Chord truss in this type of application the ease and time of setup is reduced drastically without unbalanced load issues.

Sold as a kit for indoor use only, kit includes upright poles (290mm box truss), cube corners (290mm box truss), cross bar (290mm 5-chord box truss), Steel bases (800x800mm steel base plates) and all spigots, pins & clips.

Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.

Features:

• Warranty: 2 years
• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

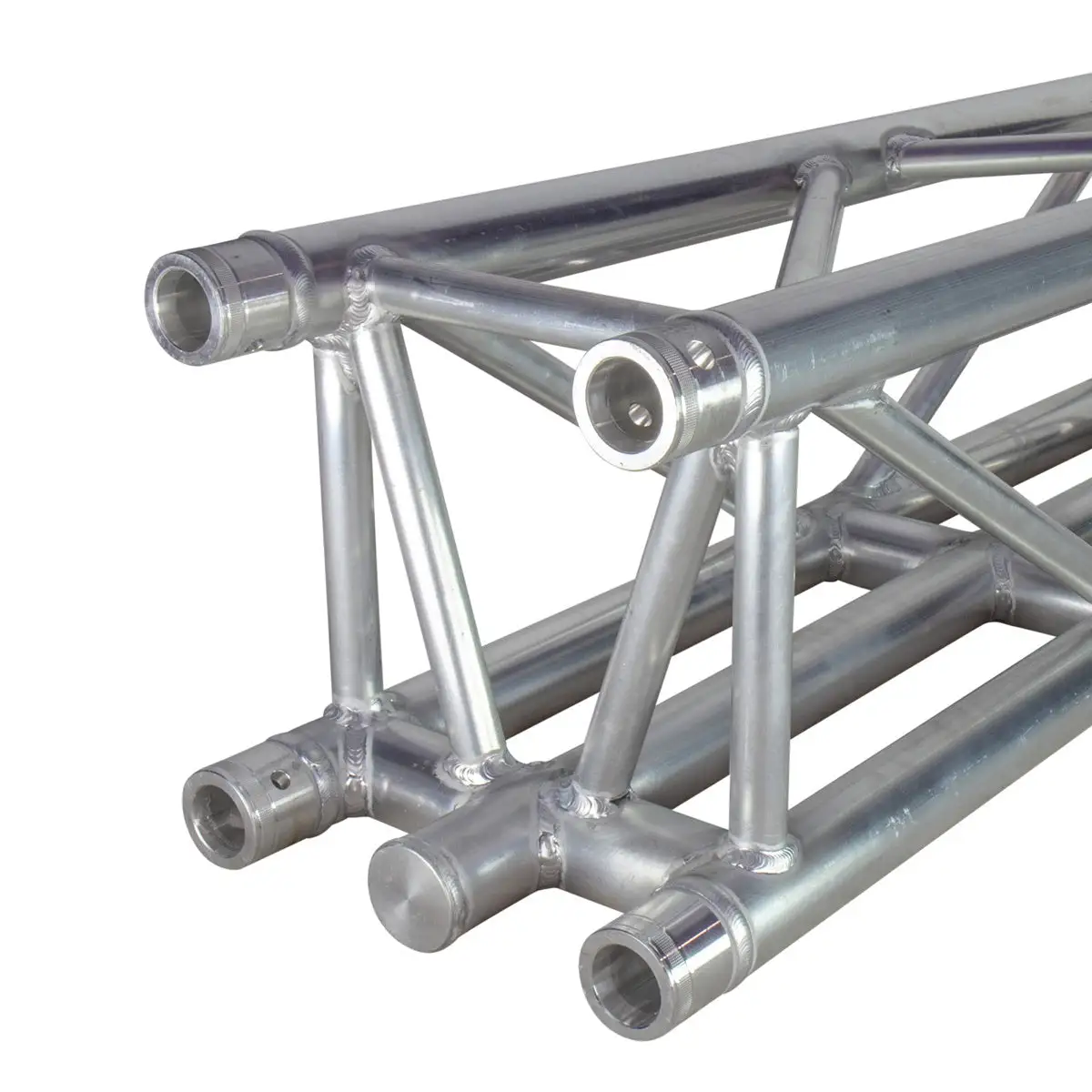

• 290mm 5-Chord truss, ideal for LED video wall and moving heads
• Set of spigots (conical couplers) and pins included in sale
• Perfect for LED Video wall, stage production, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
• Truss packages are completely customisable, contact the VFM Team to see what we can do for you

​
Specs

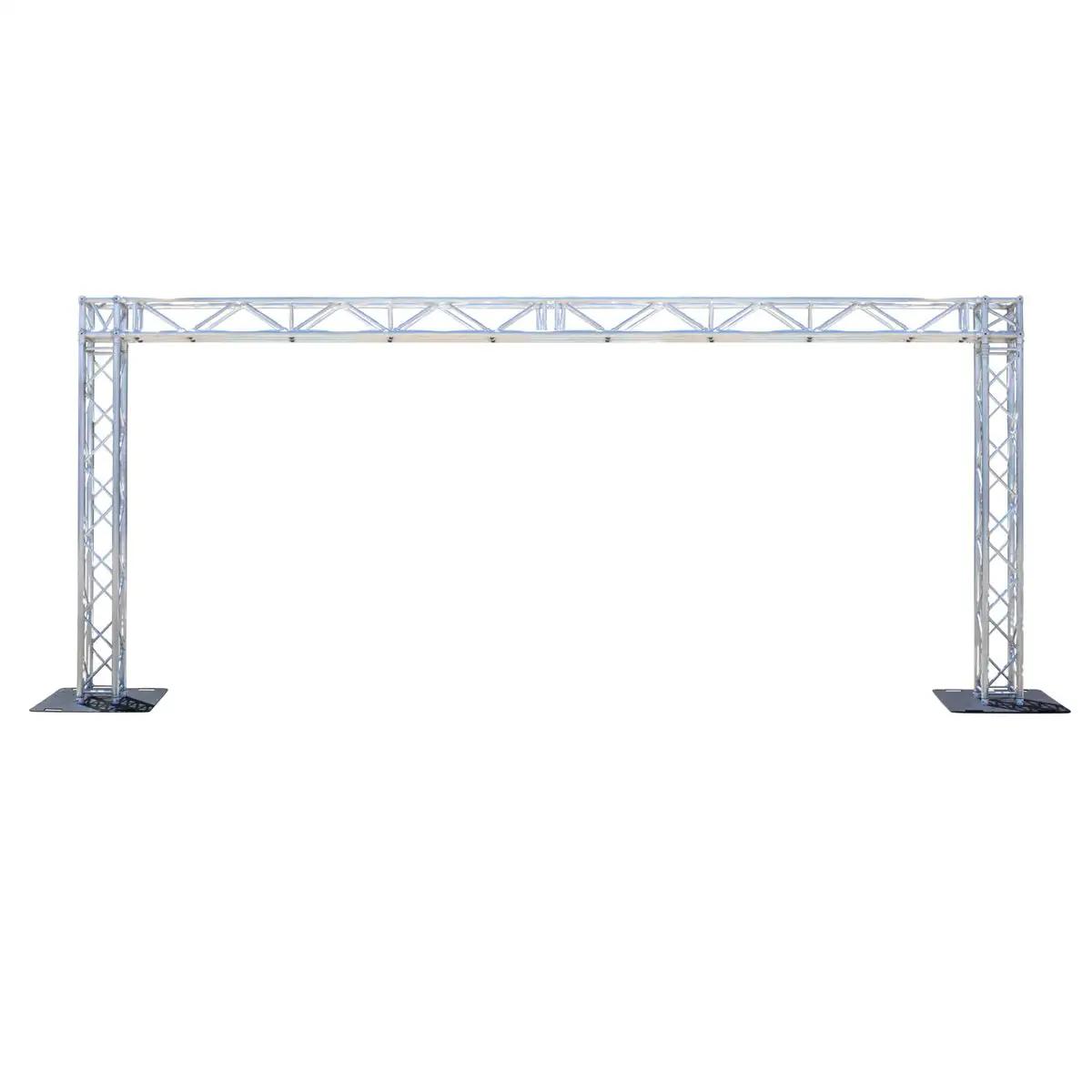

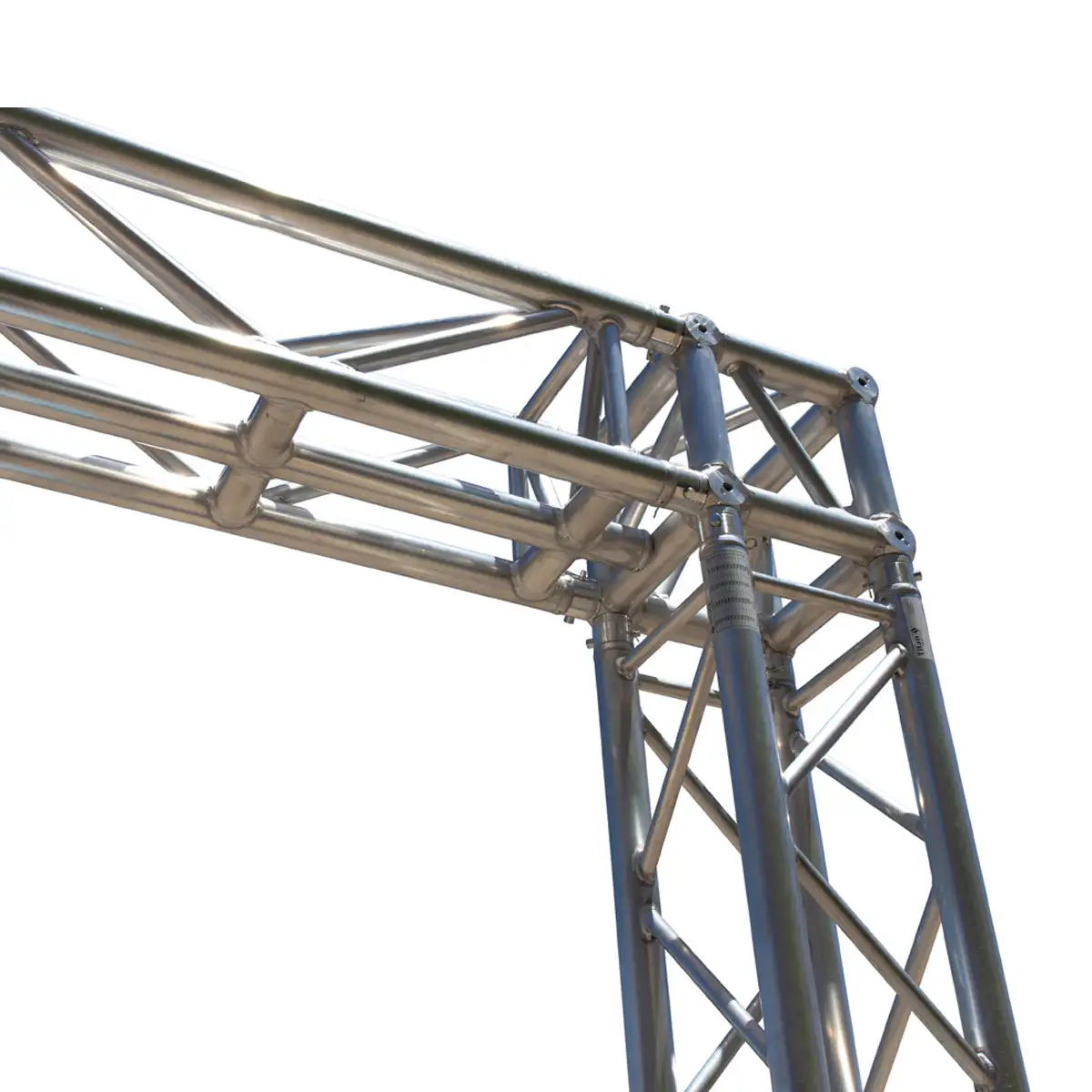

• Aluminium LED video wall Truss Frame 3.3m (H) x 6.6m (W)
• Box Truss 290mm
• Height: 3.3m (3m Clearance)
• Width: 6.6m (6m Clearance)
• Upright truss Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
• Cross bar truss Material: 6082-T6 Aluminium main tube: 50x3mm, braces: 25x3mm
• Corner / cube truss Material: 6082-T6 Aluminium main tube: 50x3mm, braces: 25x3mm

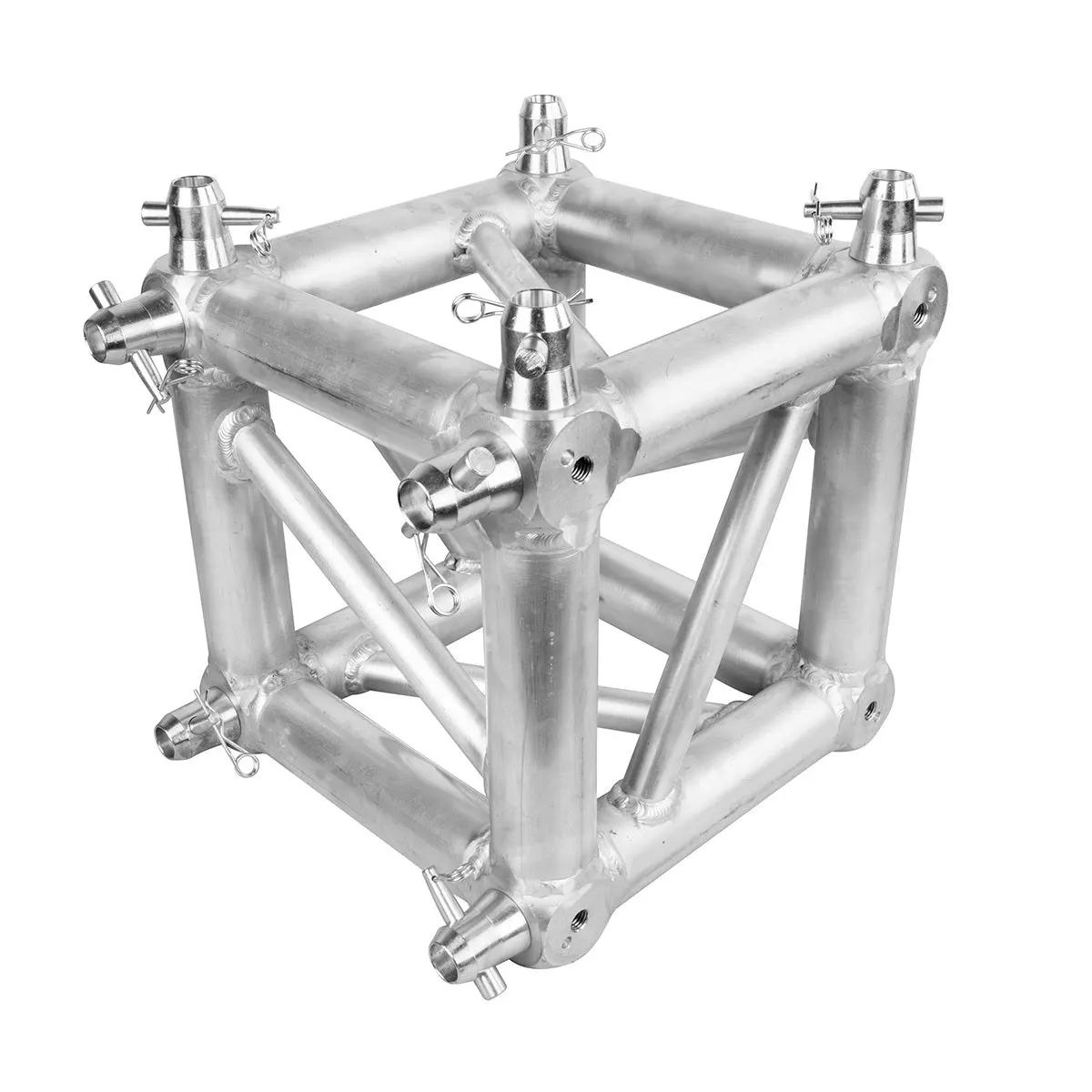

• 2 x 290mm Box Truss cube corners
• 2 x 3m 290mm 5-Chord Box Truss lengths

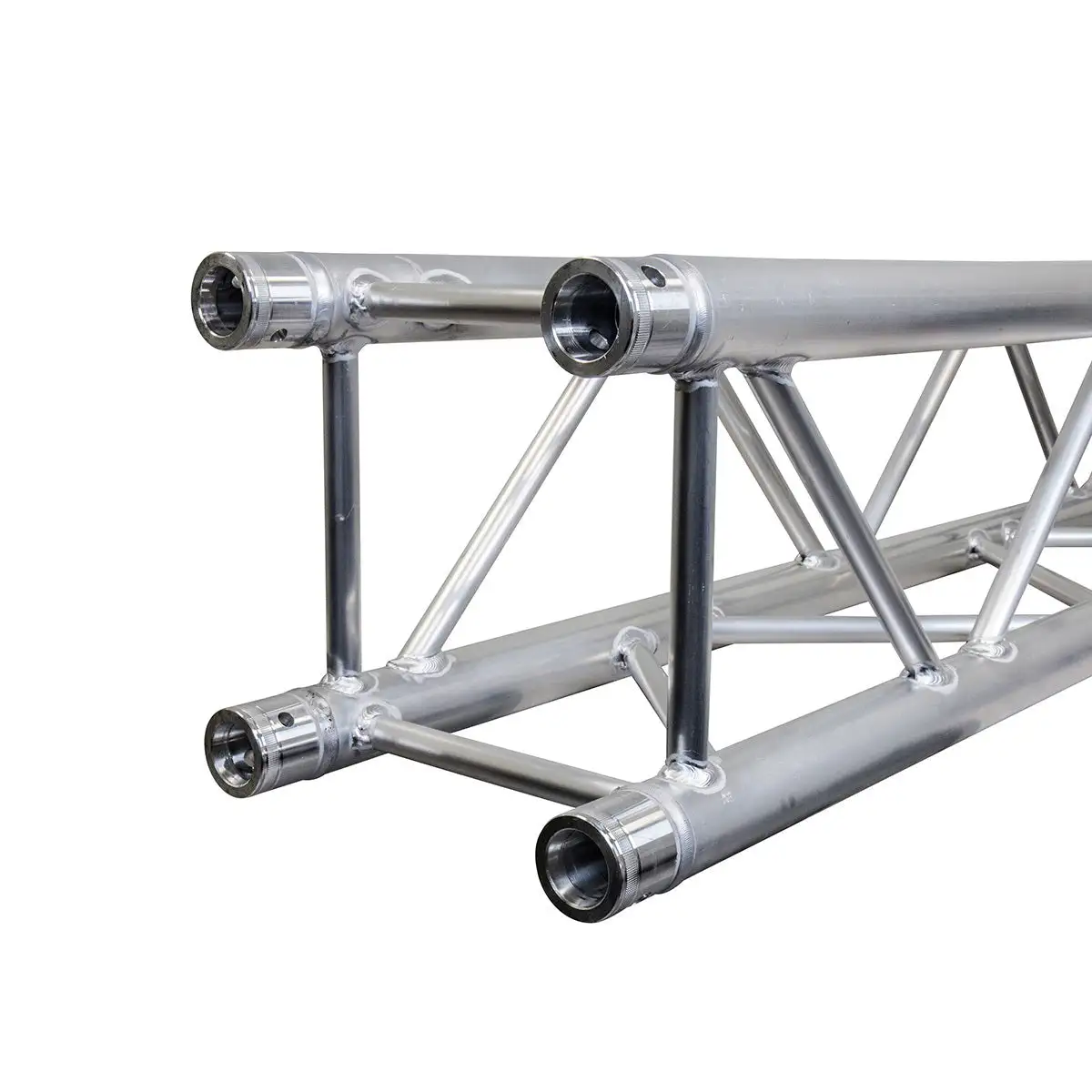

• 2 x 3m 290mm Box Truss lengths

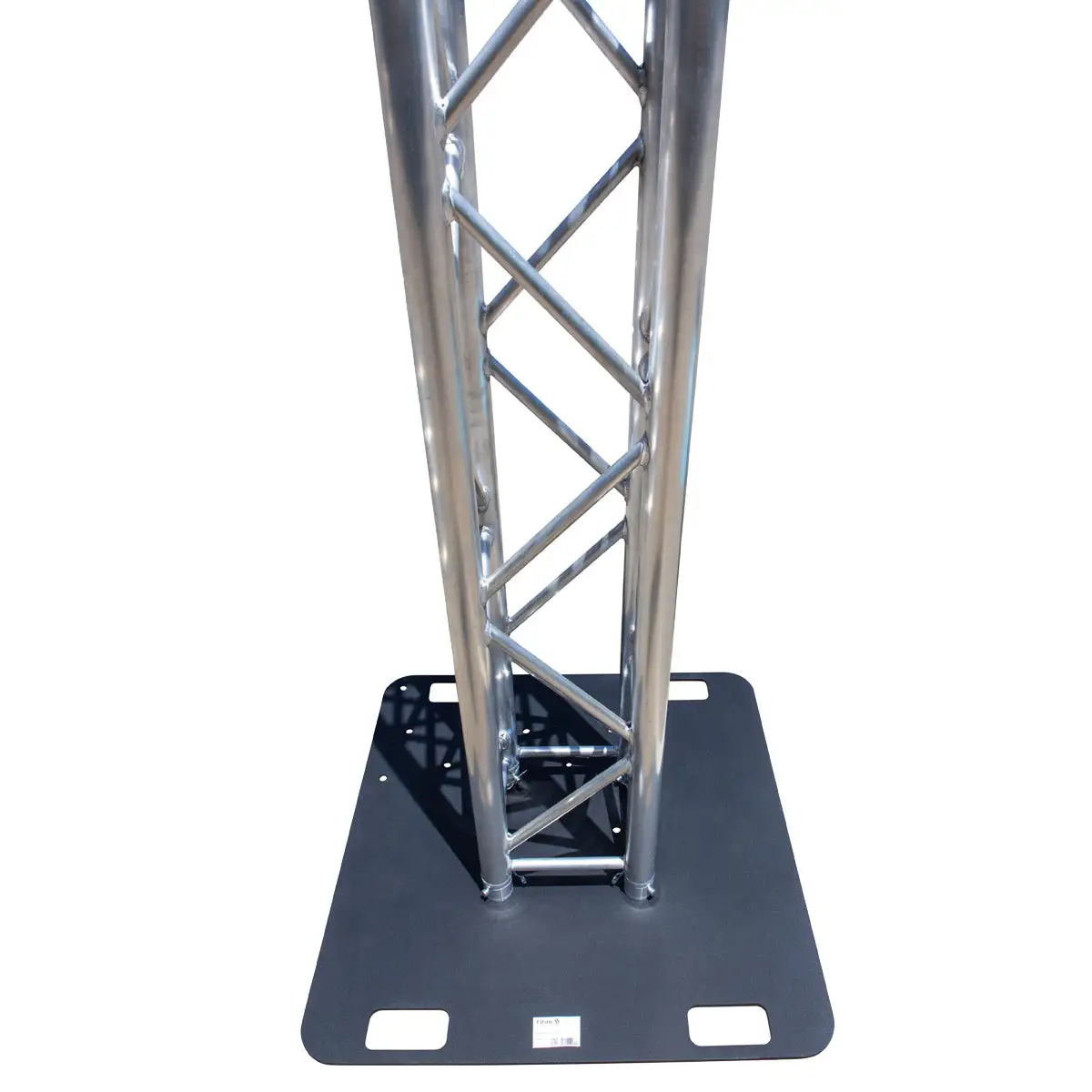

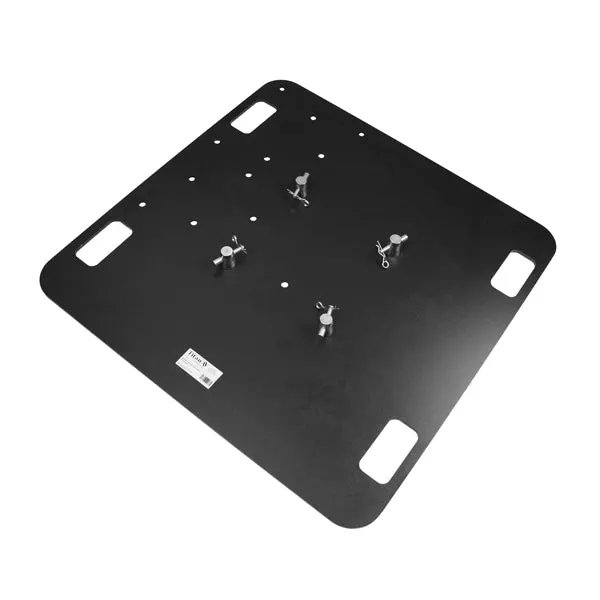

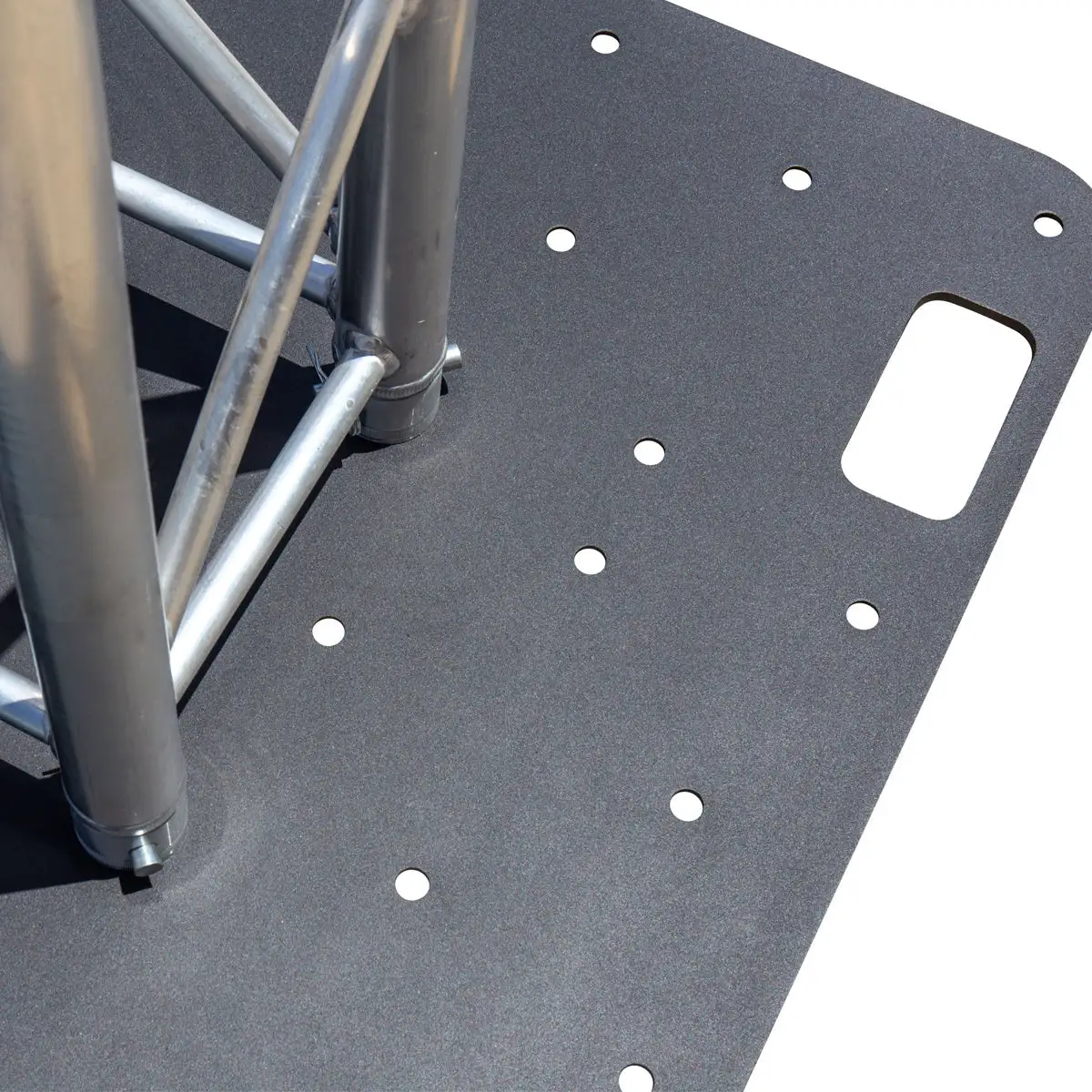

• 2 x Steel base plates 800x800mm
• INDOOR USE ONLY
