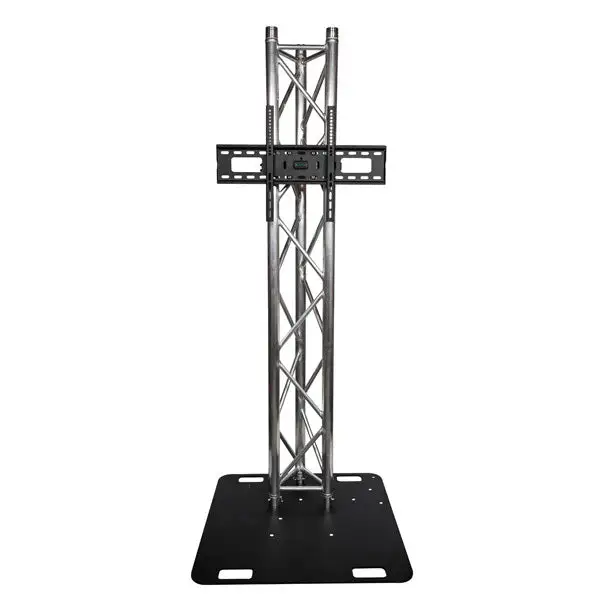

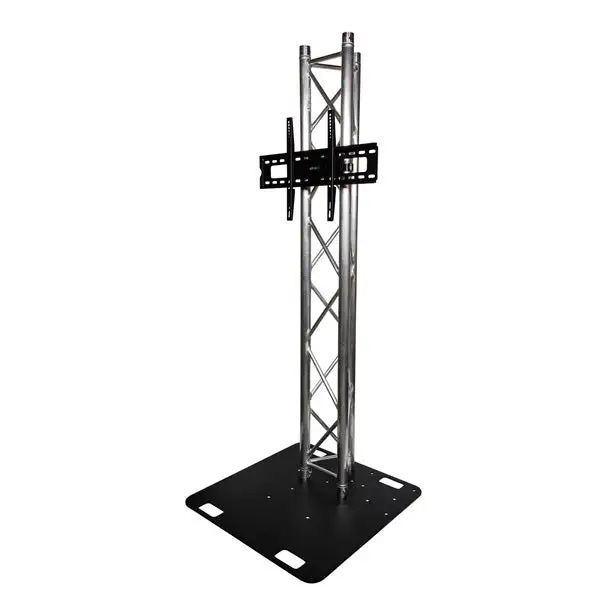

Titan AV 2m Tri Truss Tilt Mount TV-Plasma Stand With 800mm Steel Base
$99.99
- Get the Best for Less
- Service with a smile, always online.
- Shop with Zero Worries
- Safe Shopping Guaranteed
The TR-ST30 Tri Truss TV/plasma stand is a popular choice for trade shows, churches, schools, theatres, night clubs, DJs, shop displays, pubs and Government operations such as military and police operations.
Features:
- Truss: Made from the highest grade 6082-T6 aluminium alloy. Main Tube: 50x2mm, Braces: 20x2mm.
- Truss Safety Certification: Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
- Base Plate: Laser cut 800x800x8mm steel plate, Black powder coat finish
- Tilt TV Bracket: Holds TVs 37″ – 80″ in size with a max loading of 70kg. Tilt: -10°- +10°. Vesa mounting holes: 100x100mm, 200x100mm, 200x200mm, 400x200mm & up to 600x400mm
- Warranty: 2 Year manufacturer’s warranty (Truss & Base). 5 Year manufacturer’s warranty (TV bracket)
- Weight: Truss = 8kg, TV Bracket & Adapter = 6kg, Base Plate = 46kg.
What’s included in the kit:
- 1 x 2m Tri Truss 290mm (TR-ST30-200)
- 1 x Steel Base Plate 800x800mm (TR-BP-ST800)
- 1 x Heavy Duty 37-80″ Tilt TV Bracket (LCD-PLB-33L)
- 1 x TV to Truss adapter kit (TR-CLP50-TVBD)
- Supplied with: Spigots, Pins & Clips.

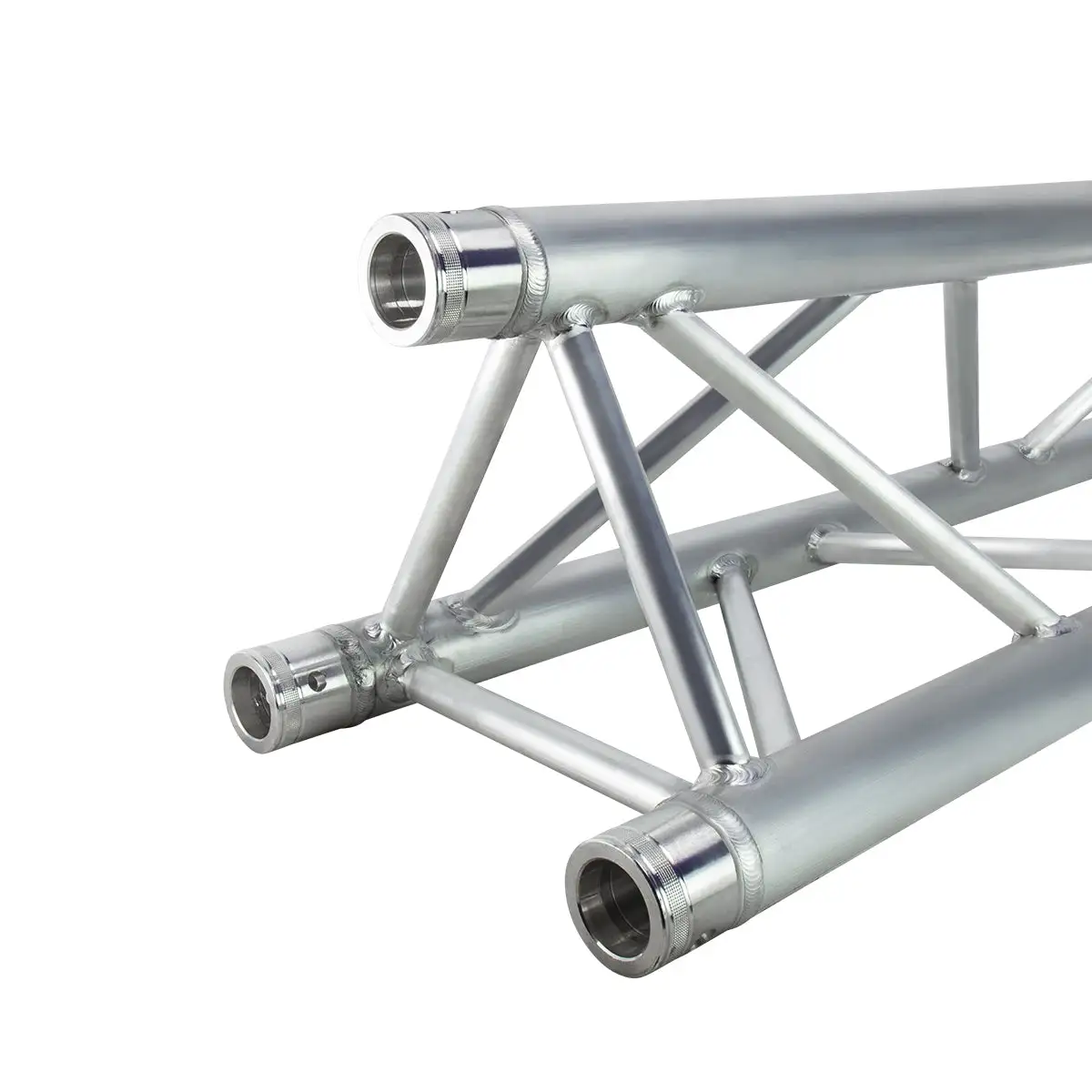

The TR-ST30 truss is often referred to as a multipurpose truss because of its low volume and versatile design making it suitable for installation, low intensity rental (Indoor) and exhibition markets. Thanks to the innovative conical coupling system the 290 Tri truss is fast and easy to assemble. Titan AV 290 truss is available in multiple lengths, a range of corners, base plates, mounts & adapters. This style of 290mm trussing is also available in box (or square) and flat (or ladder) profiles.
Safety is number 1 in our industry! We call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation) to conduct all necessary truss compliance testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on Titan AV truss materials and safety testing please refer to the Titan AV Truss Data Sheet.

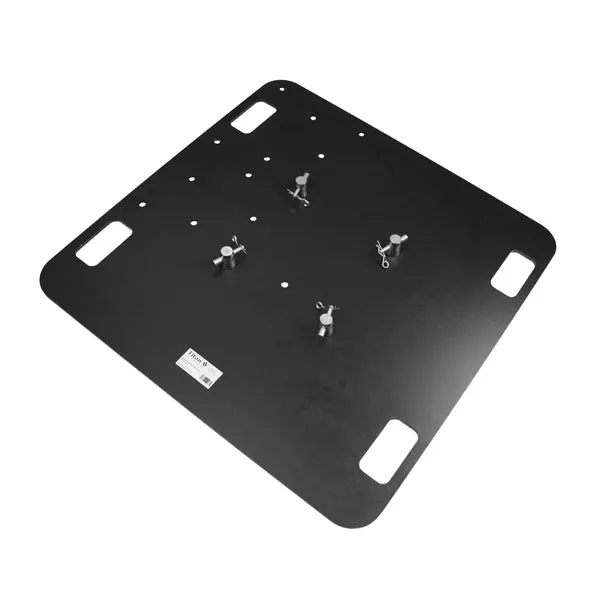

This TV stand has a larger profile base plate (800 Steel) suitable for most indoor applications and safe to be used in general public areas. The 800 Steel plate has 4 grips for 2 people to comfortably lift the plate into place + features a centre, corner & centre side mounting options making this kit extremely versatile and suitable for most installations.
Is this the right bracket for your TV?
- Ensure the weight of your TV is under the max weight of the bracket.
- Measure the mounting holes in the back of your TV, measure up & across (do not measure the diagonal distance). Then compare your measurements with the VESA hole patterns listed in the features above.

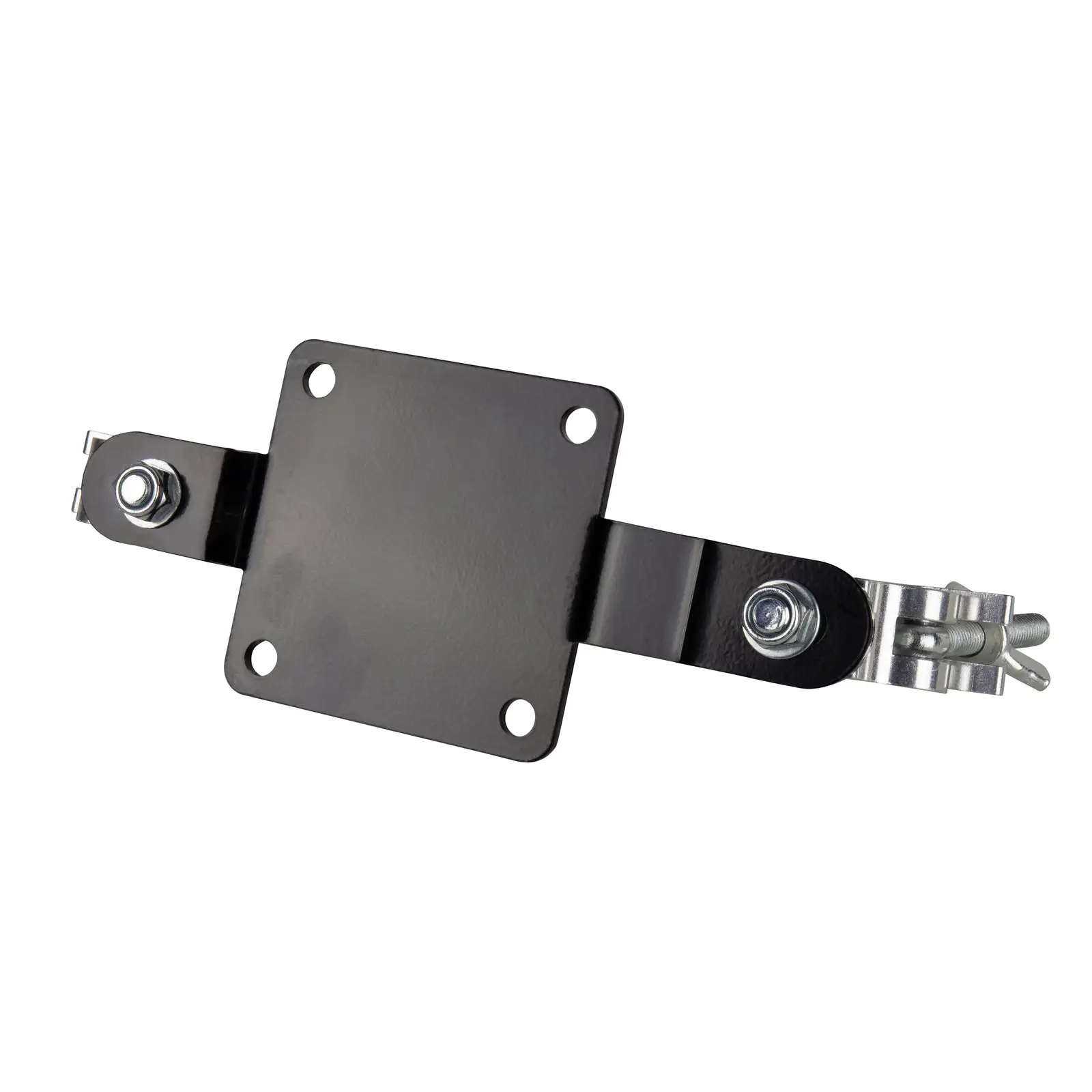

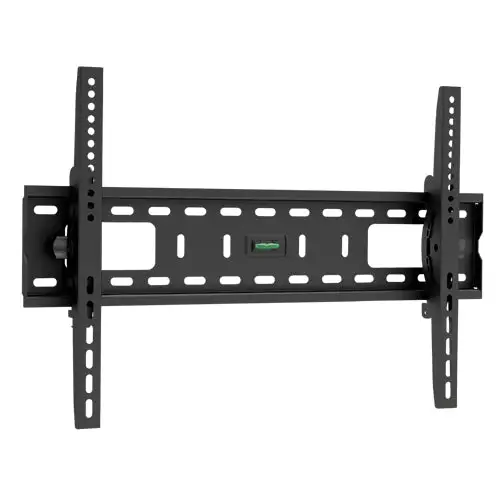

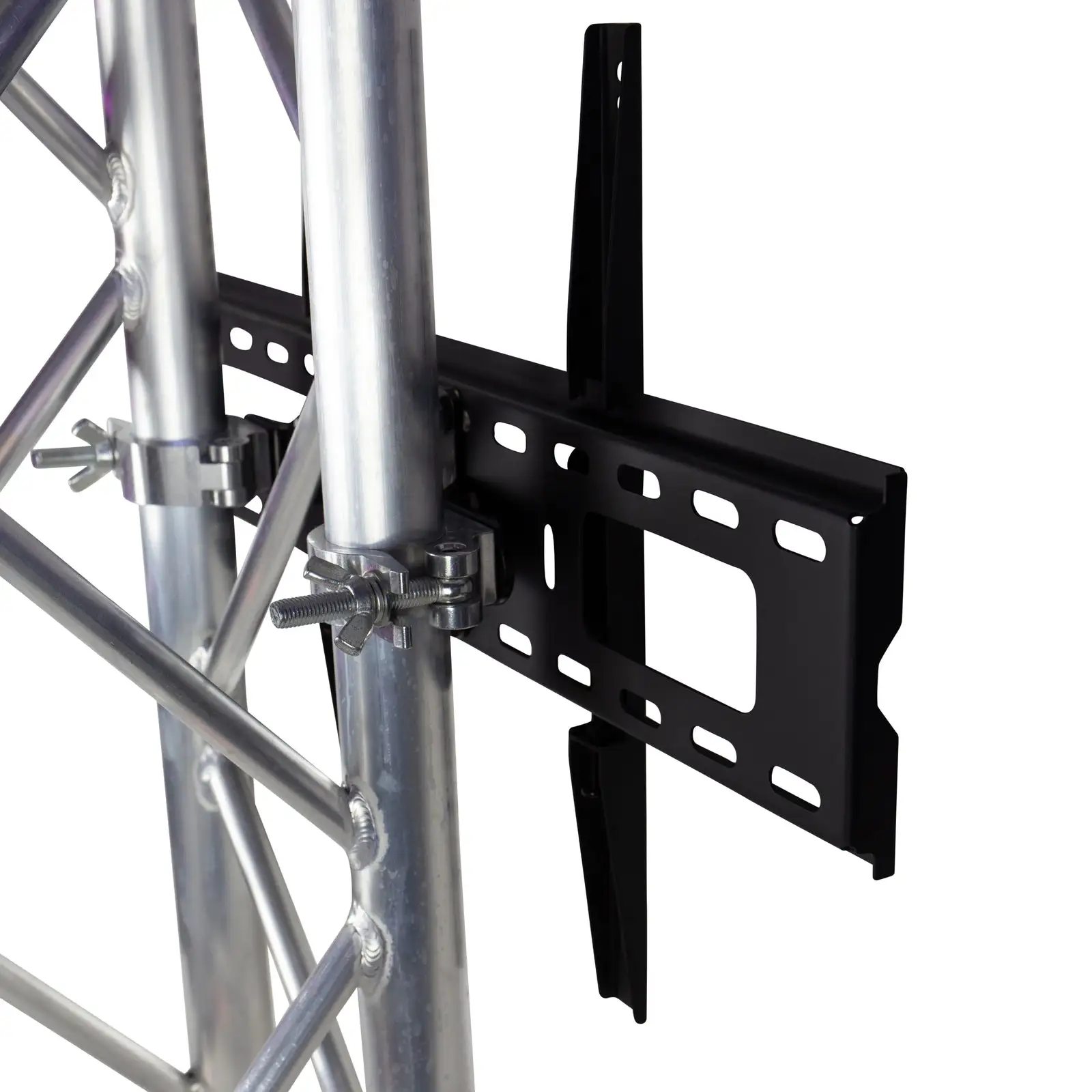

This kit comes with a TV to Truss adapter plate (TR-CLP50-TVBD) fitted with our quick connect clamping system making installations and pack down fast and easy. The included Titan AV Heavy Duty 37-80″ Tilt TV Bracket (LCD-PLB-33L) is suitable to hold 37″ – 80″ TVs with a maximum loading of 70kg.
Truss Safety + Certification
Our No 1 priority is safety, that’s why Titan AV truss is the only Australian independently certified truss on the market!
Quality Construction
Designed in Australia using the strongest materials (6082-T6) & constructed by expert welders, Titan AV Truss is built to last!
