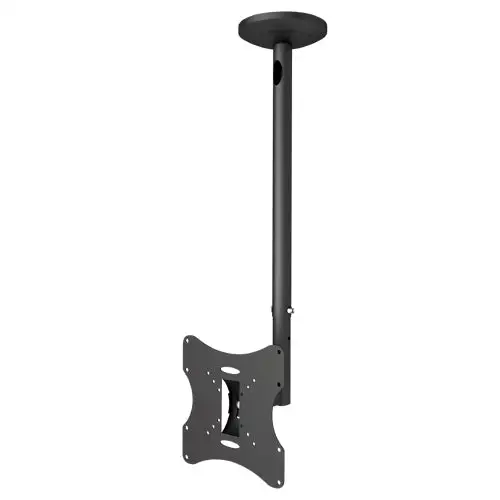

Titan AV TV Ceiling Mount Bracket 23-42″ Tilt, Swivel

LCD-504A is a small to medium weight ceiling mount bracket designed to offer the ultimate in versatility and universal compatibility. It is the perfect solution for retail and commercial displays, offering 180° of and an impressive pole drop length. It combines advanced cable management features and ceiling mount covers to ensure an elegant and tidy look. VESA-compatible fits 75×75,100×100,200×100 and 200×200 hole patterns.

Is this the right bracket for your TV? These two tips will help:

*Please note this bracket is not suitable for Sony and Hisense TV’s that have a 100mm Horizontal x 200mm Vertical mount.*

• Perfect for mounting & Monitor Tv’s
• Recommended screen size: 23-42″
• Ornamental corners conceals assembly and mounting hardware
• Cable management system helps keep cables concealed and organized
• Supplied with fixings and accessories for most common installations
• Instructions included
• Warranty: 2 year

• Max weight load: 30kg
• Vesa mount/ mounting holes (H x V):
• 75x75mm
• 100x100mm
• 200x100mm
• 200x200mm
• This bracket is NOT suitable for 100x200mm (H x V) mount.

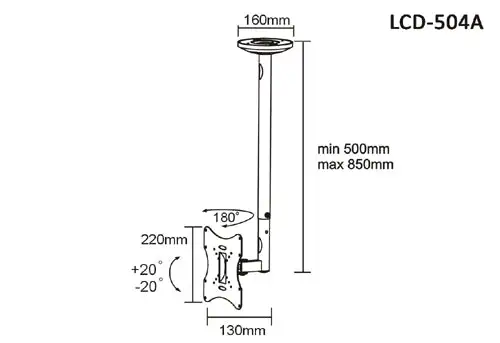

• Swivel: -90° – +90°
• Tilt: -20° – +20°
• Distance from mounting point: 500-850mm (Adjustable height)
• Main : Steel
• Colour: Black
• Weight: 2.5kg
• 1 x LCD/LED Tv ceiling mount bracket
