Titan AV TV Wall Mount Bracket 37-80″ Tilt, Heavy Duty

Easy to use and install, the popular model PLB-33L is designed to fit most 37”- 80” Flat and curved Panel TV’s up to 75kgs in weight. It features a solid construction and 100% safety guarantee. This is one of our classic heavy-duty tilt brackets and is the recommend choice of most installers, common applications are for mounting TV’s that need to be higher up the tilt application helps remove reflections and glare on the screen. The Integrated bubble level is included for easy installation and alignment. VESA-compatible fits 100×100, 200×100, 200×200, 400×200 & up to 600×400 hole patterns.

1. Make sure the weight of your TV is under the max weight of the bracket. (The max loading weight of the bracket can be found in the features list)

2. Measure the mounting holes in the back of your TV, measure up & across. Then compare your measurements with the VESA hole patterns listed. (The VESA/mounting hole patterns for the bracket can be found in the features list)



• Max weight load: 75kg

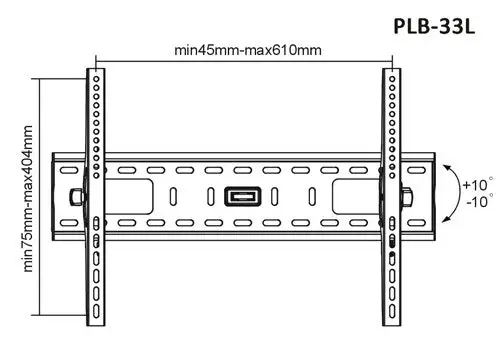

• Vesa mount/ mounting holes (H x V):
• 100x100mm
• 200x100mm
• 200x200mm
• 400x200mm
• up to 600x400mm
• Tilt: -10°- +10°
• Distance from mounting point: 63mm (profile)
• Main material: Steel
• Colour: Black
• Weight: 3.5kg
• 1 x LCD/LED/Plasma TV wall mount bracket with tilt
